Deck Systems
Redefine Quality And Aesthetic Beauty With Mbrico Tile Deck Systems
Mbrico’s joist framed tile deck systems are engineered to deliver a higher standard for elevated outdoor spaces.
Built on a patented tongue-and-groove track system, each tile locks into place for precise alignment, structural stability, and long-term performance without the limitations of wood, composite, or surface-laid pavers.
Designed for decks, balconies, and residentail rooftop applications, Mbrico provides a durable, low-maintenance solution that combines architectural aesthetics with proven performance in any environment.
Architect & Specifier Resources
Documentation for evaluating, specifying, and detailing the Mbrico Joist-Framed Deck System. Find testing, certifications, and more on Resources.
- 3-Part Specification Guideline
- CSI MasterFormat – 07 76 16
- Deck System Technical Data
- Deck System Overall Detail
- Mbrico Brochure
- Green Certifications
- DWG Files
- Explore Mbrico on Acelab
- Explore Mbrico on Arcat
- Explore Mbrico on Architizer
Residential Deck Highlights

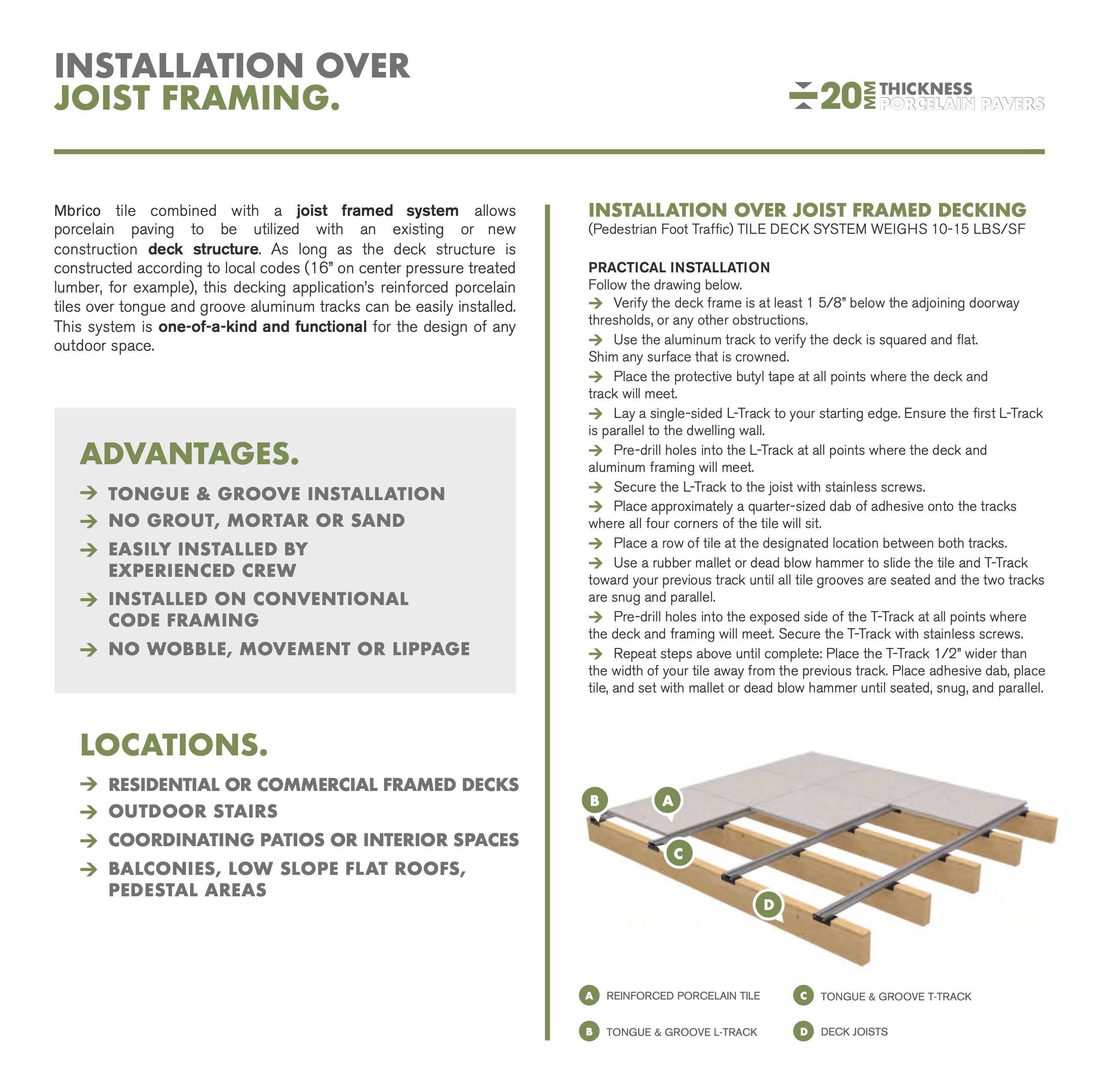

Joist Framed Install Summary Sheet
Joist Framed Install Tutorial Video
Performance Snapshot
- 4,500 lb Load Rating
- Supports outdoor kitchens, spas, and high-traffic environments
- Freeze-Thaw Approved
- Non-porous and built to perform through harsh winters without cracking, shifting, or warping
- Zero Wobble Stability
- Locked system eliminates movement found in mainstream systems
- Superior Traction Rating (DCOF)
- ADA-compliant surface provides reliable grip in wet conditions where composite is slick
- Free-Draining System
- Grout-free design prevents water retention, reducing long-term structural risk
- Cooler to the Touch
- Porcelain surface reflects heat more effectively than composite, PVC, and wood, improving comfort in direct sun
Mbrico FAQs Answered

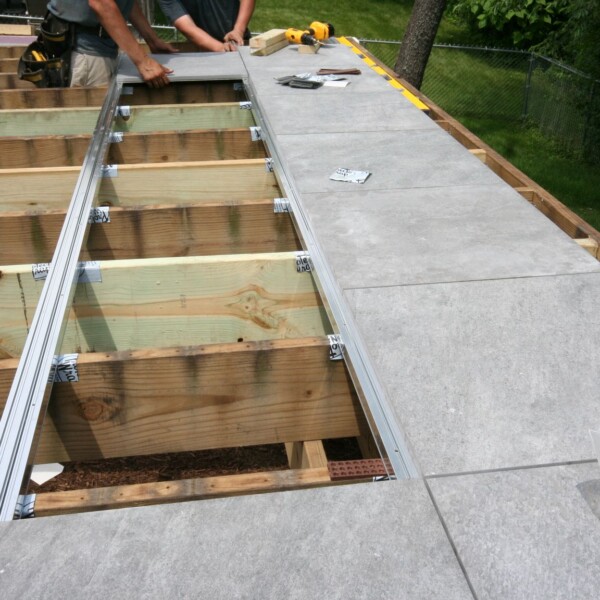

Installation
Step 1: Verify the deck frame
Verify the deck frame is at least 1 5/8″ below the adjoining doorway thresholds, or any other obstructions.
Step 2: Use the aluminum track
Use the aluminum track to verify the deck is squared and flat. Shim any surface that is crowned.
Step 3: Place the protective butyl tape
Place the protective butyl tape at all points where the deck and track will meet.
Step 4: Lay a single-sided L-Track
Lay a single-sided L-Track to your starting edge. Ensure the first L-Track is parallel to the dwelling wall.
Step 5: Pre-drill holes
Pre-drill holes into the L-Track at all points where the deck and aluminum framing will meet.
Step 6: Secure the L-Track
Secure the L-Track to the joist with the provided stainless screws.
Step 7: Place the T-Track
Place the T-Track 1/2″ wider than the width of your tile away from the previous track.
Step 8: Place approximately a quarter-sized dab
Place approximately a quarter-sized dab of provided adhesive onto the tracks where all four corner of the tile will sit.
Step 9: Place a row of tile
Place a row of tile at the designated location between both tracks.
Step 10: Use a rubber mallet or dead blow hammer
Use a rubber mallet or dead blow hammer to slide the tile and T-Track toward your previous track until all tile grooves are seated and the two tracks are snug and parallel.
Step 11: Pre-drill holes into the exposed side of the T-Track
Pre-drill holes into the exposed side of the T-Track at all points where the deck and framing will meet. Secure the T-Track with the provided stainless screws.
Step 12: Repeat steps above until complete
Repeat steps above until complete: Place the T-Track 1/2″ wider than the width of your tile away from the previous track. Place adhesive dab, place tile, and set with mallet or dead blow hammer until seated, snug, and parallel.
Resistant to stains
Mbrico’s tile deck surfaces remain unaltered over time, making molds, moss and dark smudges a thing of the past.
Easy-to-install
Each Mbrico component is precision cut for accurate coupling of slabs. Engineered tongue-and-groove design eliminates guesswork and ensures consistent alignment across every install.
Easy-to-clean
Mbrico’s non-porous porcelain resists buildup and requires minimal ongoing maintenance compared to wood or composite.

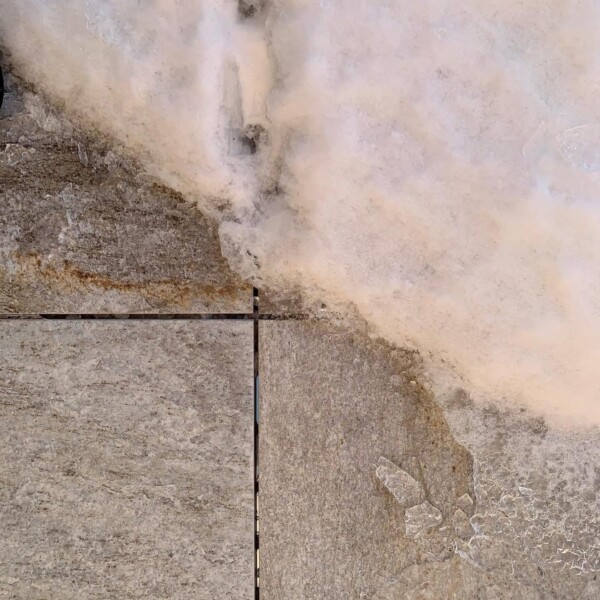

Frost resistant
Mbrico products absorb virtually no water (only 0.05%), which prevents cracking, shifting, or surface damage in cold climates.

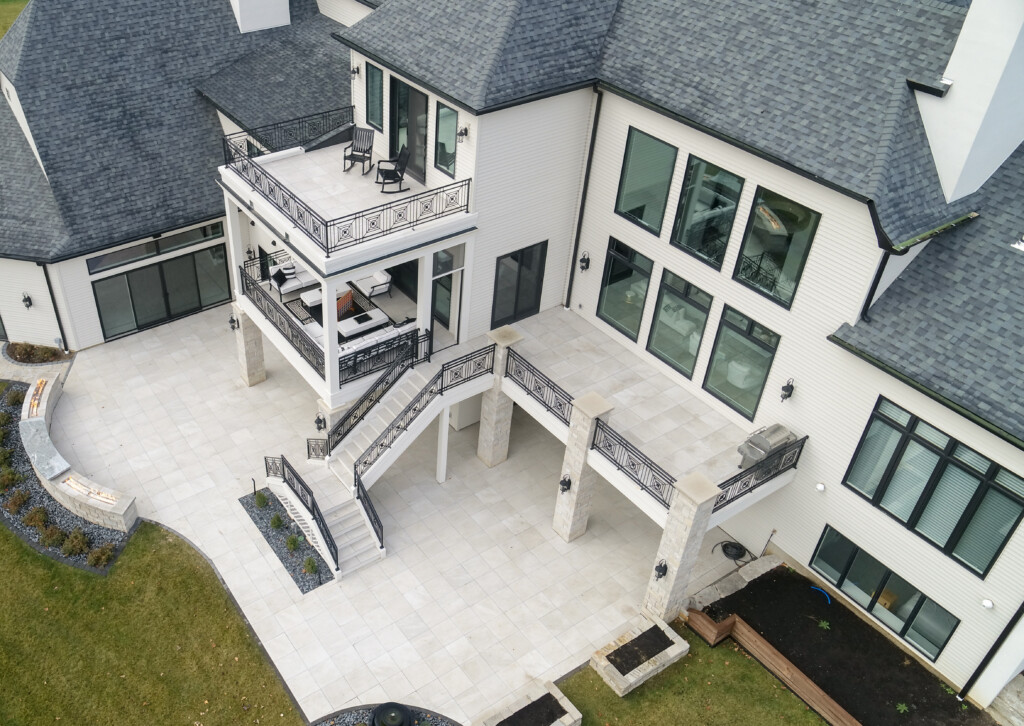

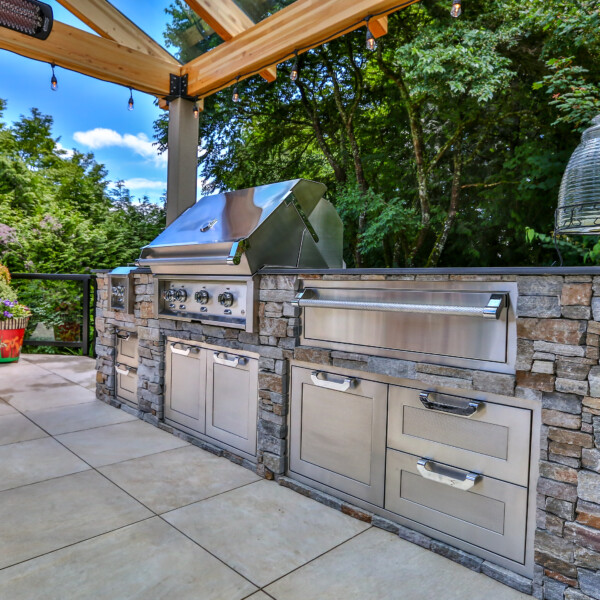

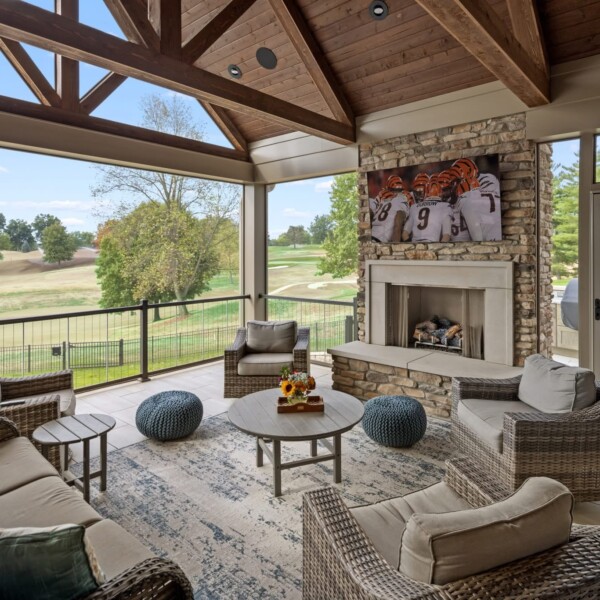

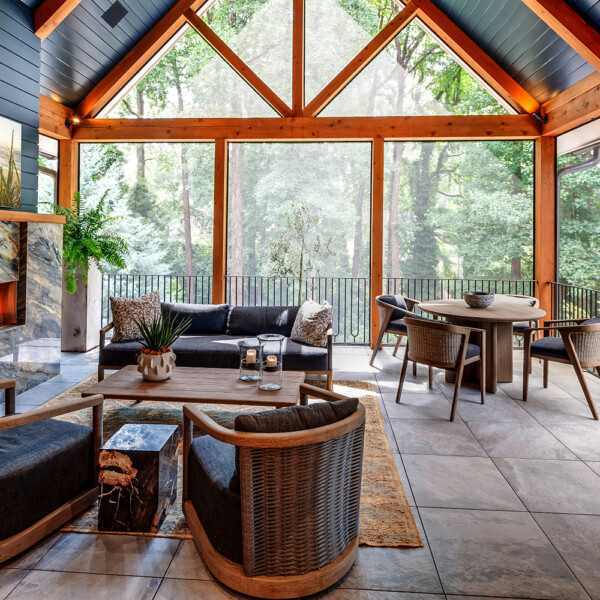

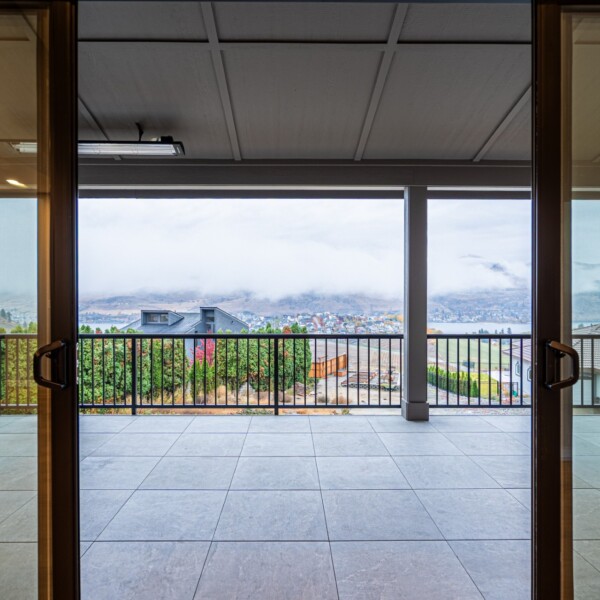

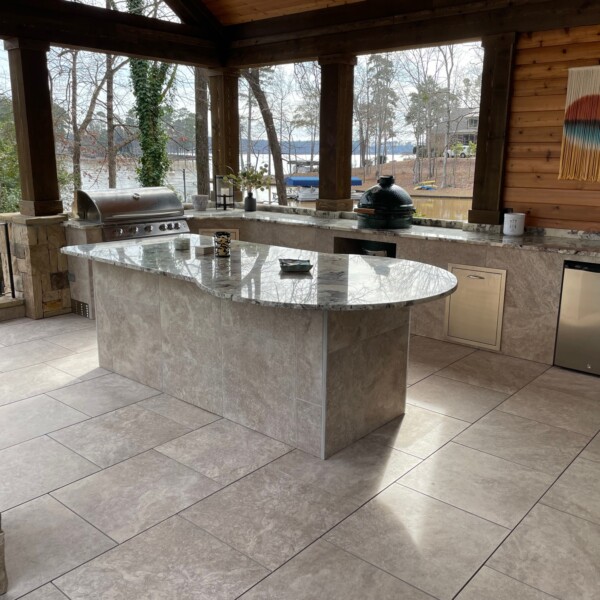

Deck Inspirations
